X-Mill Milling Machine 630D

PKR 0.00

Upgradeable to hybrid, intergrated milling of full materials

High-performance 2.5kw(optional) industrial spindle

Cast iron gantry frame for enhanced rigidity

Buy now

Technical Parameter

Dimensions: 650X800X850(mm)

Net weight: 320kg

lnput voltage: AC 220V

Spindle power: 2.5kw

Total Power Consumption: 3.8KW

Milling range: XYZ: 260/100/105mm A: 360° B: ±30°

Milling mode: Wet/dry

Max speed: 60,000 rpm

Bur capacity: 20

Bur changing: Automatic

Spindle cooling: Water cooling

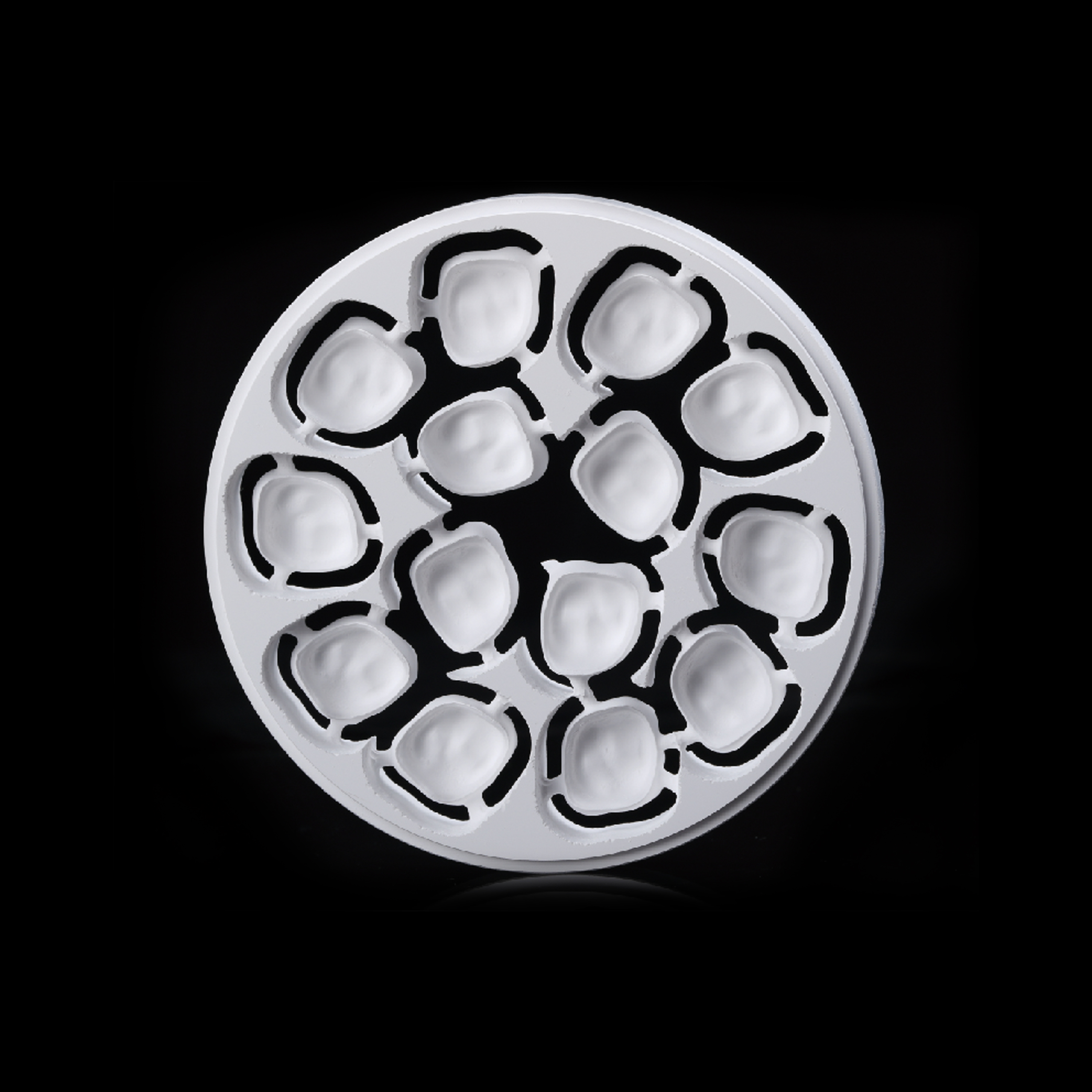

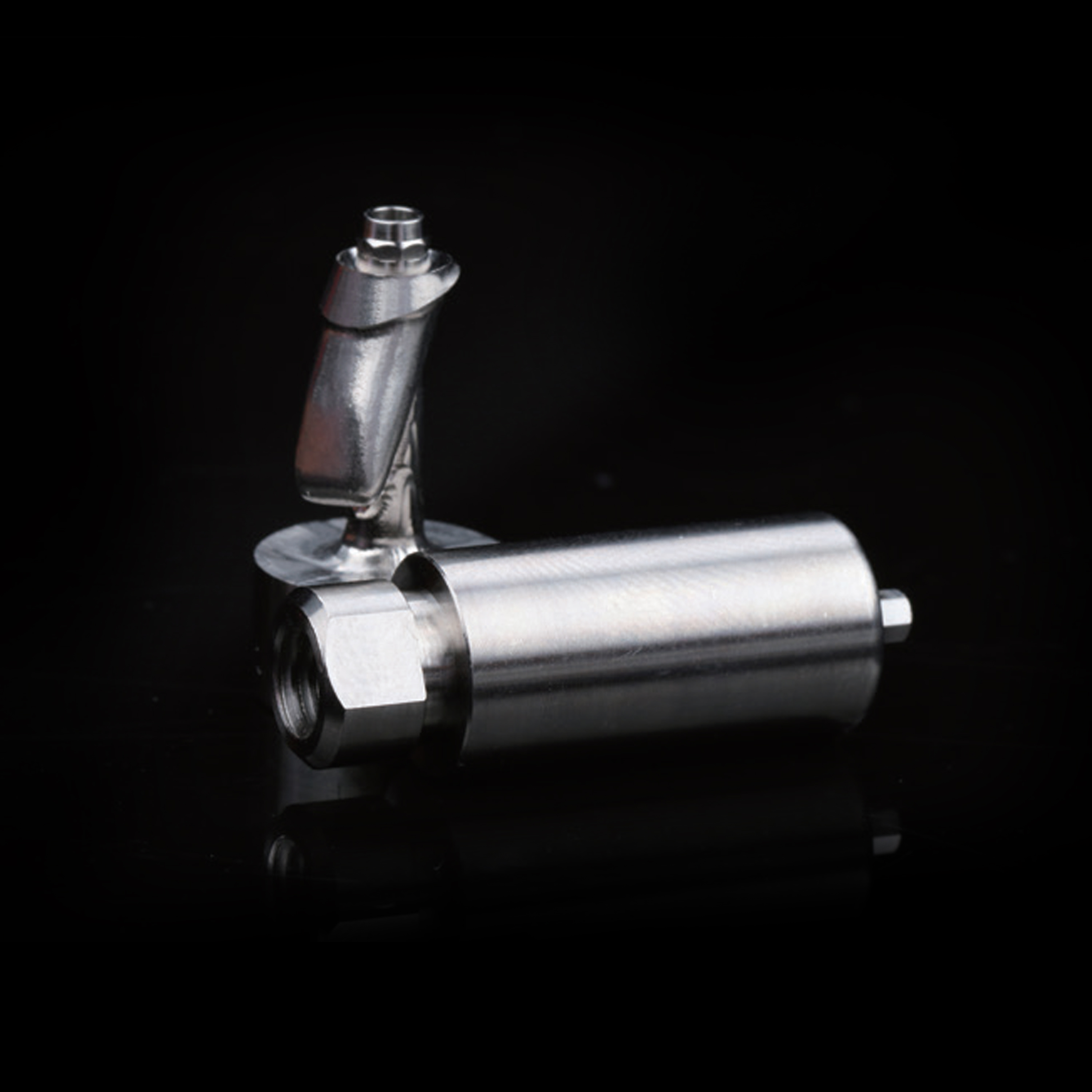

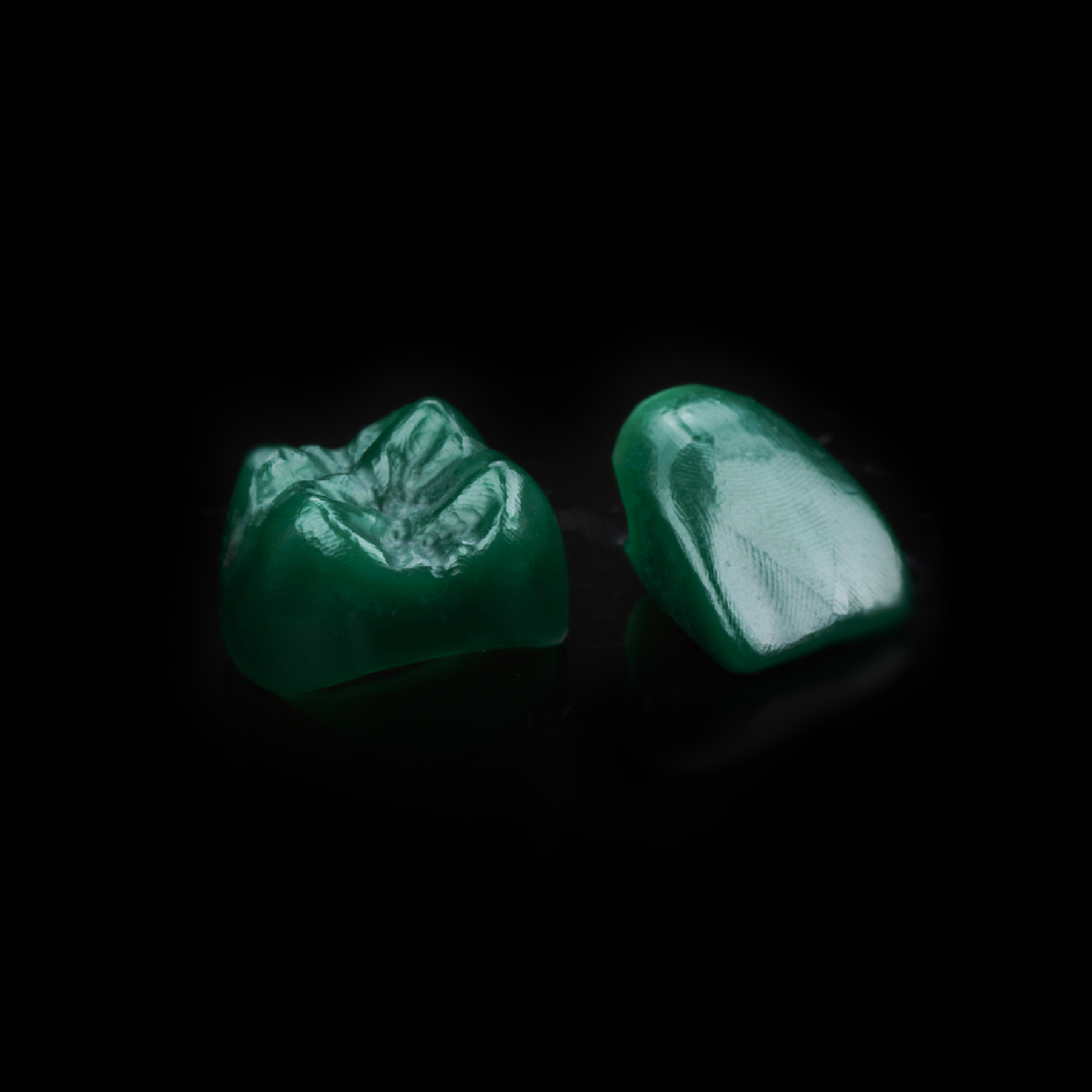

Materials: PMMA、Wax Blocks、Glass-ceramic、Prefabricated Abutments、98 mm Round Blank

Millable Case Type: Crown, Bridge, Inlay, Onlay, Veneer, Abutment crown, Splint & Retainer, Removable denture

Milling time: Glass ceramic: 17mins, Premill abutment: 25 mins, Wax: 3mins
