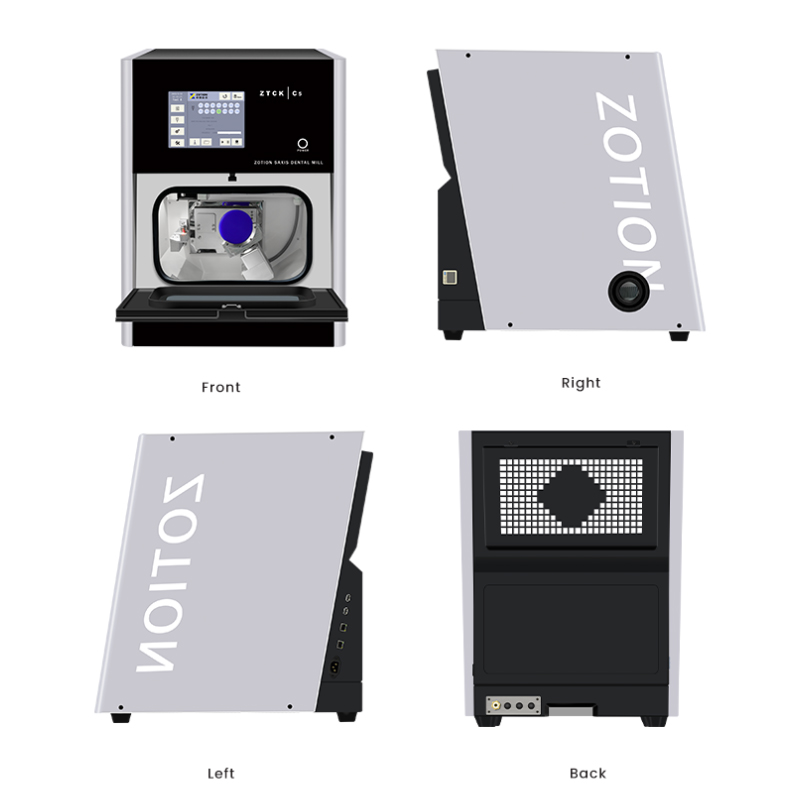

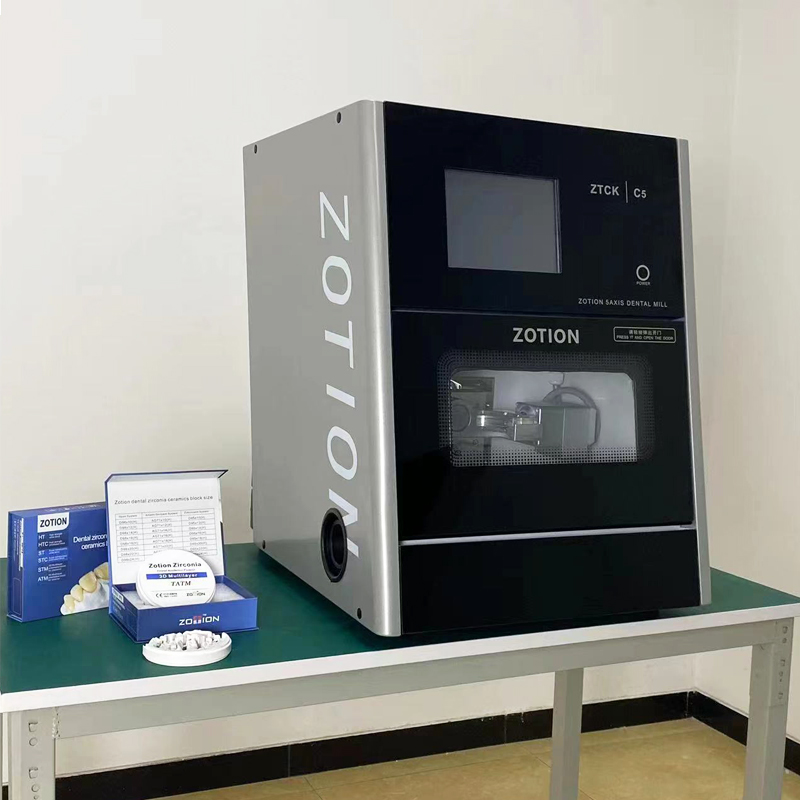

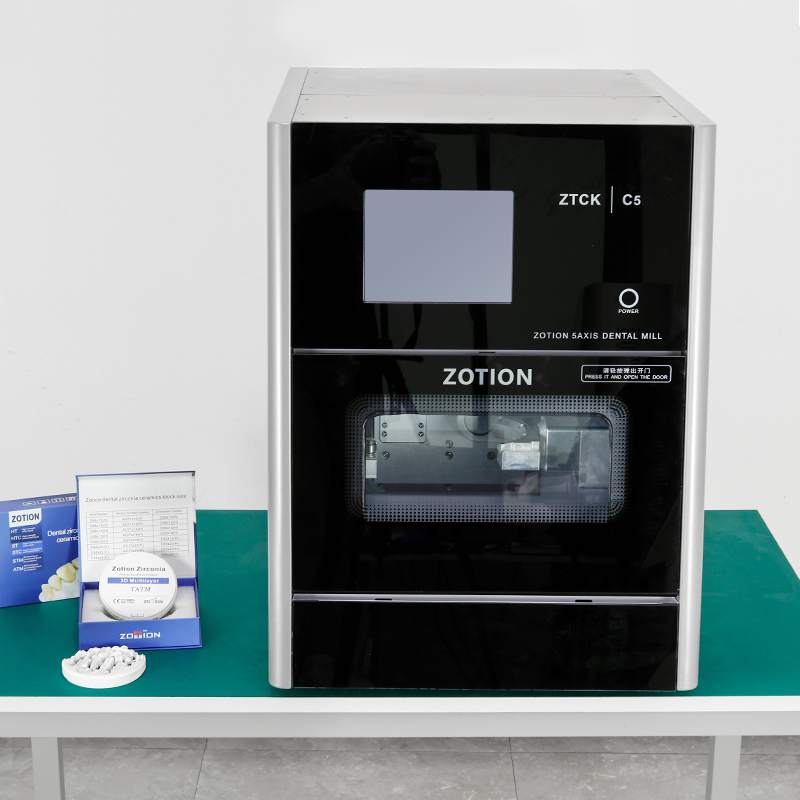

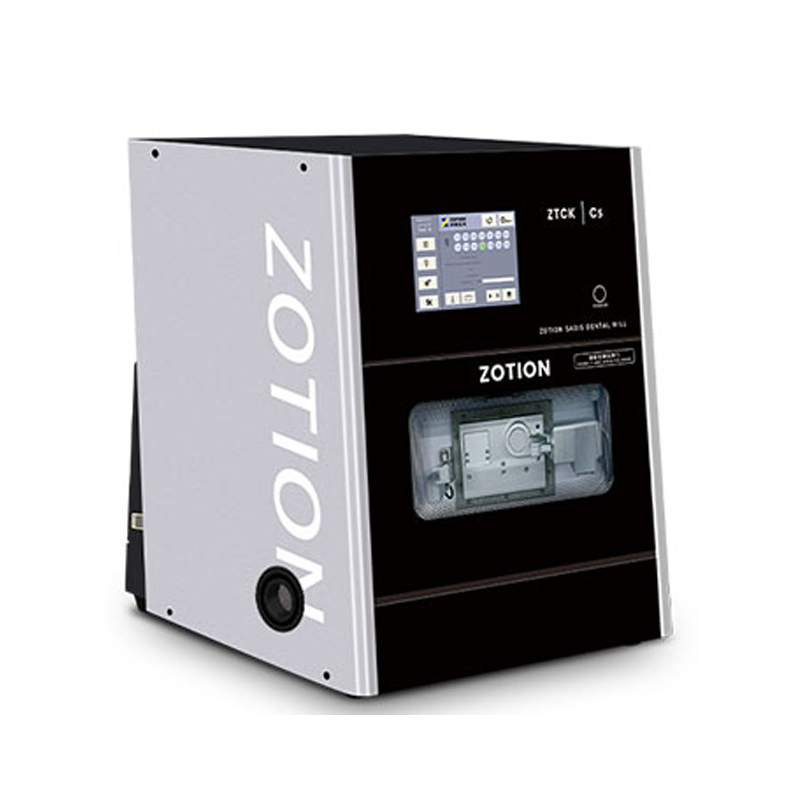

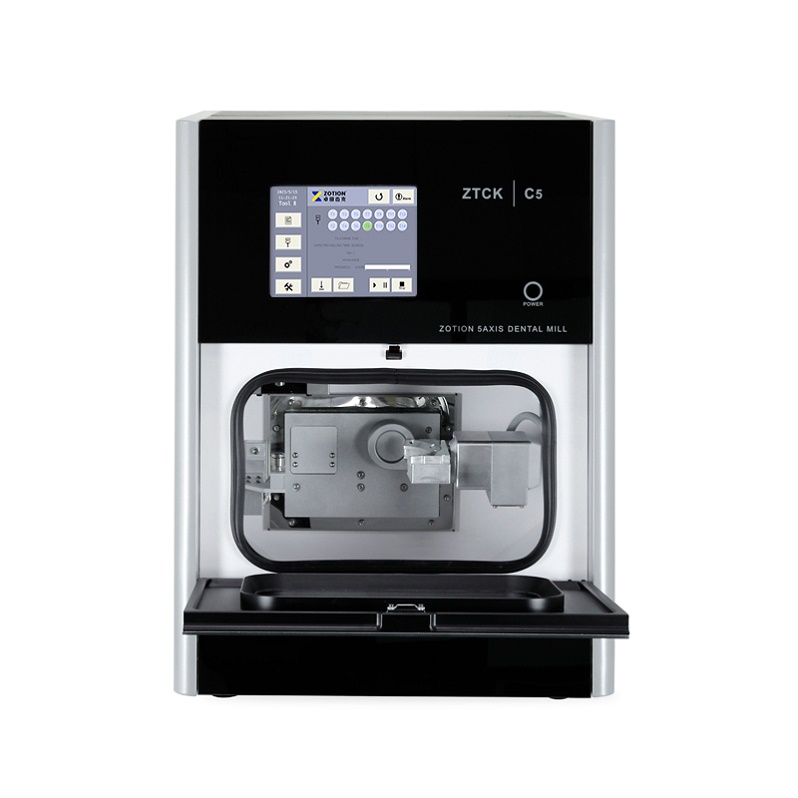

CAD CAM Dental Milling Machine
Category Laboratory Equipment > Dental Milling Machine
Brand Zotion

CAD CAM Dental Milling Machine

Price on request
5 Axis Dentaire Cad Cam Dental Milling MachineZotion 5 axis dry milling machine. it can mill: Zirconia Block, Wax, Peek, Pmma, The biggest feature of our machine compared with other machines is that it can Bring you greater profits !CLICK HERE FOR INSTRUCTIONS FOR USE
Buy now

5 Axis Dentaire Cad Cam Dental Milling Machine

Zotion 5 axis dry milling machine. it can mill: Zirconia Block, Wax, Peek, Pmma, The biggest feature of our machine compared with other machines is that it can Bring you greater profits !

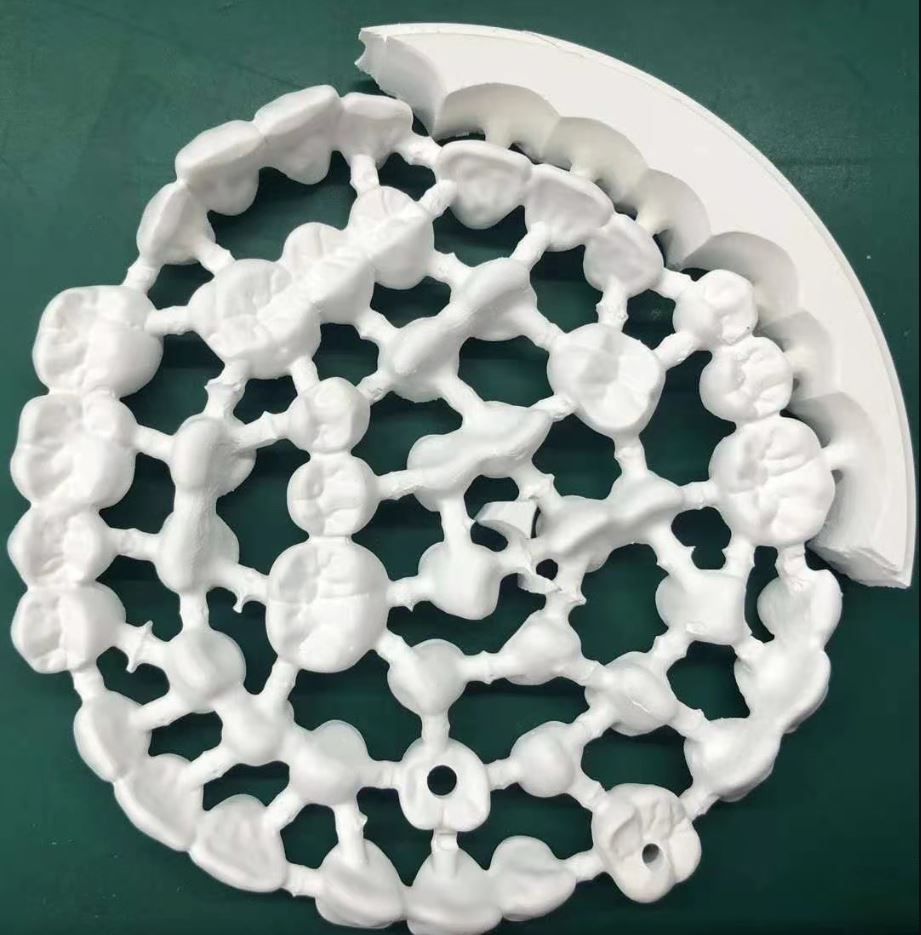

it because of our patented design : Special Fixture . Different from the traditional 180-degree fixture, we independently developed a 100-degree fixture, helps you save 30% material, a piece of zirconia will mill at least 5-6 more teeth , and no need for a second plastic bracket.

Products parameter

ModelC5
Axis5
Milling modeDry
The size of the milling material98mm,98.5mm and the max thickness is 80mm
The max speed of the spindle6000-60000 rotation/min
Spindle power500w
Spindle coolingAir cooling
The angle of the axisAaxis: 360°Baxis：+25°-115°
Number of tool housed8
Compatible compressed air＞6pa(No oil and no water)
Loadable workpiece shapeDisk diameter: 98mm
Input Voltagemax.850W,50-60Hz,220ACV

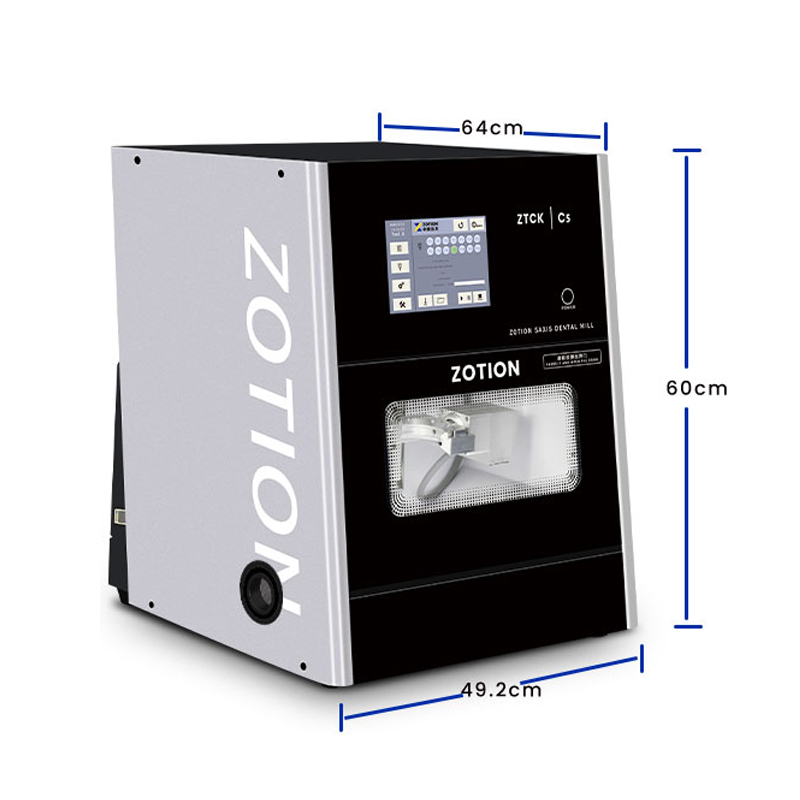

External dimensions468*600*660mm
Weight90kg
Control command setNC code
Accuracy0.01mm

Products advantages

Advantage of Zotion C5:
1; Has a unique 100°blank holder, so when you milling dental material ,it can save 30% material,
2; The tool magazine will automatically hide when you don't use it to avoid falling into powder
3;The A axis =土360°，B axis is +25 to -115° The big rotation range ensures a wide angle of milling
4;C5 don’t need calibration
