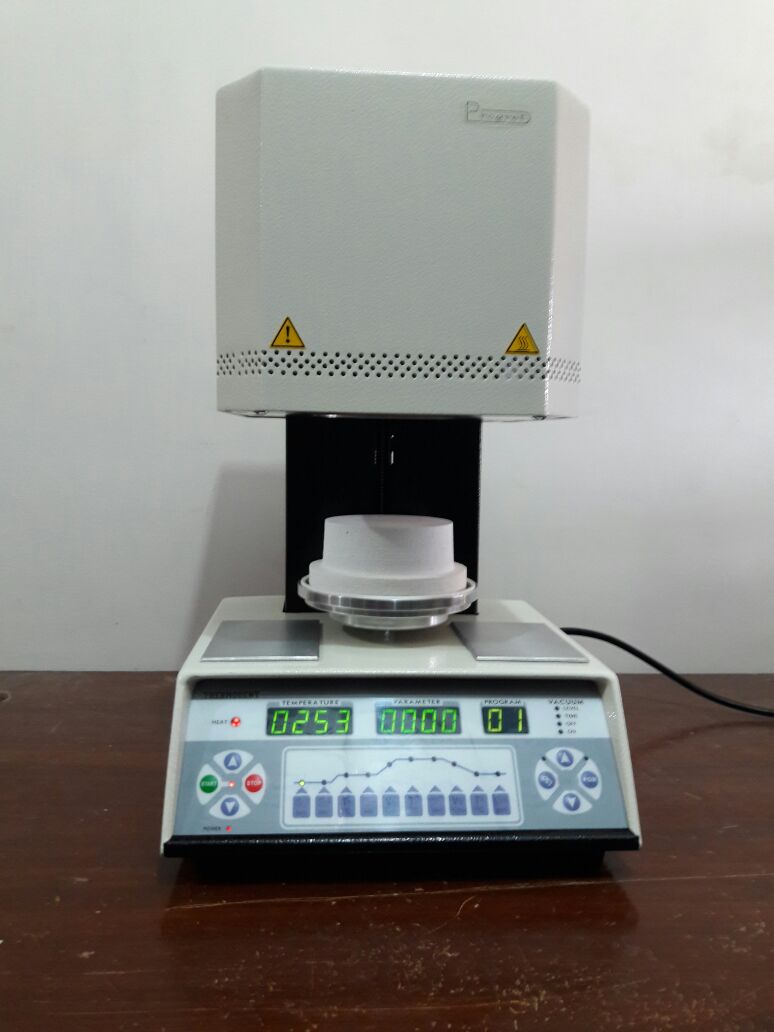

THERMODENT
Automated vacuum furnaces for sintering metal-ceramic, zirconium and press-ceramic crowns.
High reliability (with 2 years warranty), heating element KANTHAL (Sweden) covered by quartz tube, compactness and simplicity of servicing provide high firing quality while working with various ceramic masses.
Features
150 archival factory programs for following ceramic masses
| GC Initial | Noritake EX3 | IVOCLAR IPS |
| Creation | Celtra | Duceram KISS |
| Ceramko 3 | HeraCeran | VITA |
| FINESSE | ZEO CE LIGHT | IPS e.max ceram |
Protection from power supply failures. Short failures don’t corrupt firing cycle and vacuum .
High measurement accuracy of temperature of ±1°С in wide supply voltage range (187 to 244 V AC) due to selfcalibration eliminate the need of periodical calibration by silver.
Nonvolatile memory
Vacuum system with electronic sensor provides:
- vacuum level control
- reaching a vacuum level of 90% at a given temperature
- automatic breaking of program on lose of vacuum in firing chamber
- loss of mains voltage does not lead to loss of vacuum
Loss of mains voltage does not lead to loss of vacuum
Wide functional possibilities due to independent programming of 14 parameters
Night mode
Fast copying of both user and archival programs
Main technical data
| Characteristic | Т-04 | T-05 |
| Temperature range,°С | 30 - 1150 | 30 - 1150 |
| Heating rate, °С/min.. | 2 - 230 | 2 - 230 |
| Diametr of working camera, mm | 100 | 100 |
| Furnace height, mm | 440 | 280 |
| Агктфсу depth, mm | 300 | 400 |
| Furnace width, mm | 306 | 275 |
| Max mass, kg | 15 | 15 |
| Power supply, V; Hz | 220, 50 | 220, 50 |
| Power consumption without vacuum pump (max), W | 1100 | 1100 |
Programmed parameters
| Parameter | Range | Unit |
| Drying time 1-st stage (firing table at lower position) | 0 - 3600 | Sec |
| Drying time 2-st stage (closing time of firing chamber) | 10 - 900 | Sec |
| Drying time 2-st stage(drying time - pre-sintering) | 0 - 3600 | Sec |
| Drying temperature (starting)) | 200 - 800 | °С |
| Heating rate | 2 - 230 | °С/min. |
| Firing(High) temperature | 300 - 1150 | °С |
| Firing (holding at high temperature) time | 0 - 3600 | Sec |
| Cooling rate | 30 - 230 | °С/min. |
| Opening temperature | 300 - 1150 | °С |
| Opening time | 10 - 900 | Sec |
| Температура включення вакуумної помпи | 200 - 1150 | °С |
| Temperature of switching ON of vacuum pump | 200 - 1150 | °С |
| Firing time under vacuum | 0 - 600 | Sec |
| Vacuum level | 0, 90 -108, FULL | Relative units, (100=60 mm Hg) |
